Construct a PCovR Map

from sklearn.datasets import load_diabetes

from matplotlib import pyplot as plt
from matplotlib import cm
from tqdm.notebook import tqdm

import numpy as np

from skmatter.decomposition import PCovR
from sklearn.preprocessing import StandardScaler
from sklearn.linear_model import Ridge
from sklearn.kernel_ridge import KernelRidge

cmapX = cm.plasma
cmapy = cm.Greys

For this, we will use the diabetes dataset from sklearn.

X, y = load_diabetes(return_X_y=True)
y = y.reshape(X.shape[0], -1)

X_scaler = StandardScaler()
X_scaled = X_scaler.fit_transform(X)

y_scaler = StandardScaler()
y_scaled = y_scaler.fit_transform(y)

Computing a simple PCovR and making a fancy plot of the results

mixing = 0.5
pcovr = PCovR(mixing=mixing,
              regressor=Ridge(alpha=1E-8, fit_intercept=False, tol=1E-12),
              n_components=2, )
pcovr.fit(X_scaled, y_scaled)
T = pcovr.transform(X_scaled)
yp = y_scaler.inverse_transform(pcovr.predict(X_scaled))

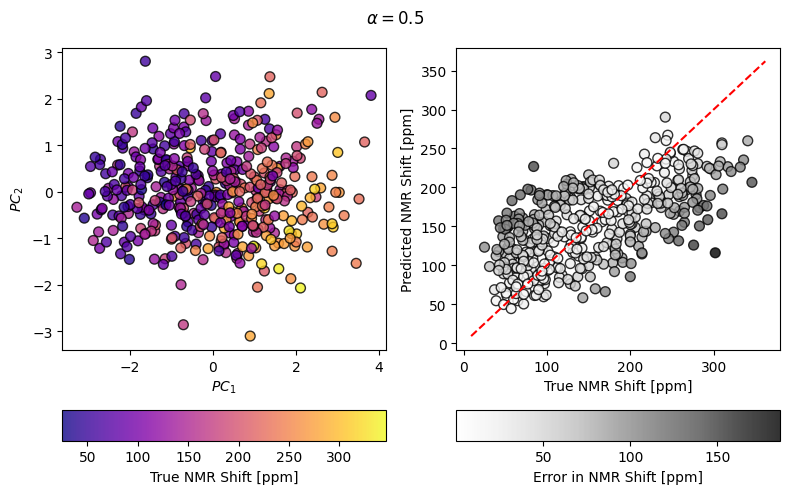

fig, ((axT, axy), (caxT, caxy)) = plt.subplots(
    2, 2, figsize=(8, 5), gridspec_kw=dict(height_ratios=(1, 0.1))
)

scatT = axT.scatter(T[:, 0], T[:, 1], s=50, alpha=0.8, c=y, cmap=cmapX, edgecolor="k")
axT.set_xlabel(r"$PC_1$")
axT.set_ylabel(r"$PC_2$")
fig.colorbar(scatT, cax=caxT, label="True NMR Shift [ppm]", orientation="horizontal")

scaty = axy.scatter(y, yp, s=50, alpha=0.8, c=np.abs(y - yp), cmap=cmapy, edgecolor="k")
axy.plot(axy.get_xlim(), axy.get_xlim(), 'r--')
fig.suptitle(r"$\alpha=$" + str(mixing))

axy.set_xlabel(r"True NMR Shift [ppm]")
axy.set_ylabel(r"Predicted NMR Shift [ppm]")
fig.colorbar(scaty, cax=caxy, label="Error in NMR Shift [ppm]", orientation="horizontal")

fig.tight_layout()

Surveying Many Mixing Parameters

n_alpha = 5

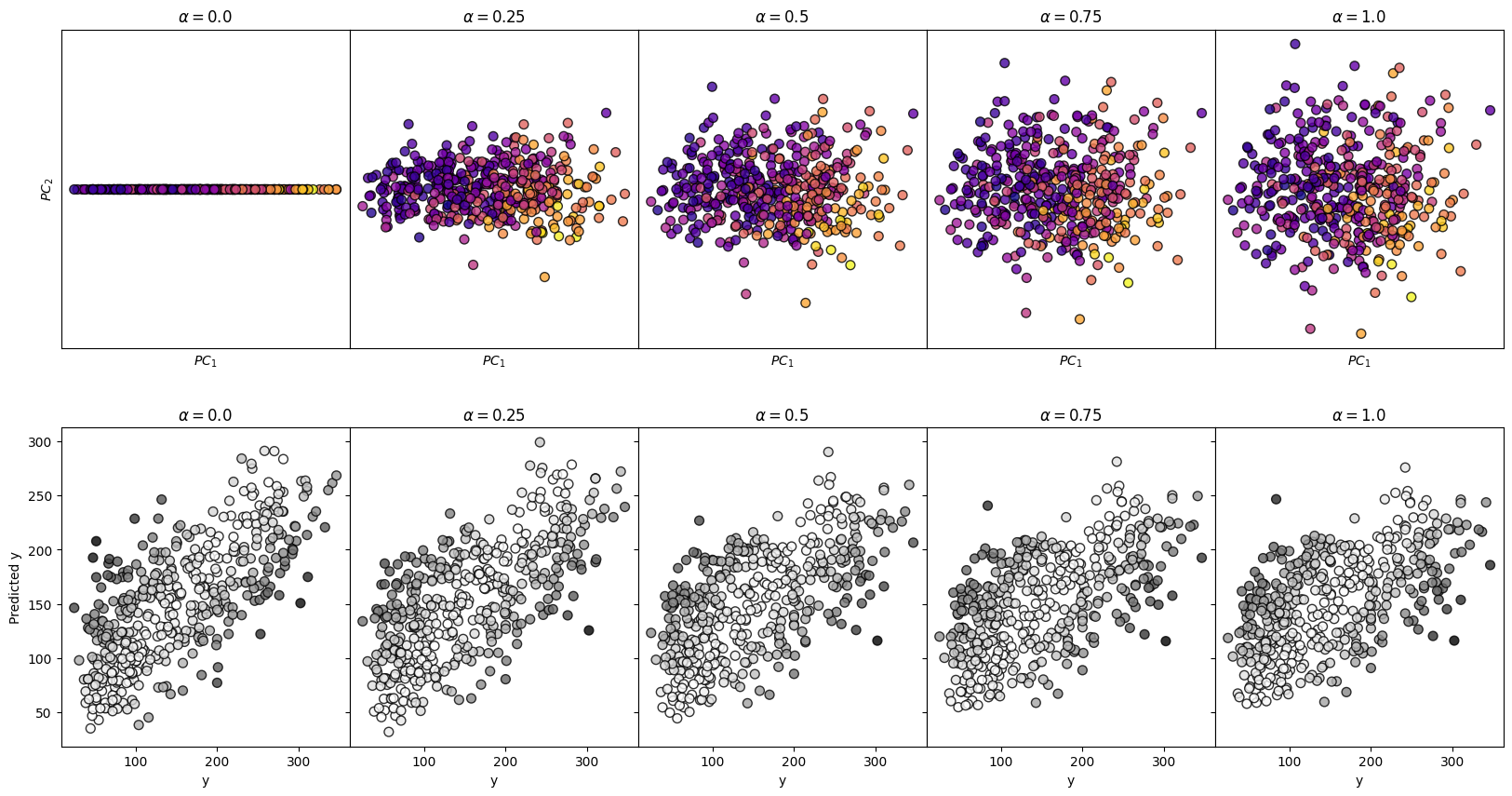

fig, axes = plt.subplots(2, n_alpha,
                         figsize=(4*n_alpha, 10),
                         sharey='row'
                        )

for i, mixing in enumerate(np.linspace(0, 1, n_alpha)):


    pcovr = PCovR(mixing=mixing,
                      regressor=Ridge(alpha=1E-8, fit_intercept=False, tol=1E-12),
                      n_components=2, )
    pcovr.fit(X_scaled, y_scaled)
    T = pcovr.transform(X_scaled)
    yp = y_scaler.inverse_transform(pcovr.predict(X_scaled))

    axes[0, i].scatter(T[:, 0],
                       T[:, 1],
                       s=50,
                       alpha=0.8,
                       c=y,
                       cmap=cmapX,
                       edgecolor='k'
                      )
    axes[0,i].set_title(r"$\alpha=$" + str(mixing))
    axes[0,i].set_xlabel(r"$PC_1$")
    axes[0,i].set_xticks([])
    axes[0,i].set_yticks([])

    axes[1, i].scatter(y,
                       yp,
                       s=50,
                       alpha=0.8,
                       c=np.abs(y-yp),
                       cmap=cmapy,
                       edgecolor='k')
    axes[1,i].set_title(r"$\alpha=$" + str(mixing))
    axes[1,i].set_xlabel("y")

axes[0,0].set_ylabel(r"$PC_2$")
axes[1,0].set_ylabel("Predicted y")

fig.subplots_adjust(wspace=0, hspace=0.25)
plt.show()

Construct a Kernel PCovR Map

Moving from PCovR to KernelPCovR is much like moving from PCA to KernelPCA in sklearn. Like KernelPCA, KernelPCovR can compute any pairwise kernel supported by sklearn or operate on a precomputed kernel.

from skmatter.decomposition import KernelPCovR

mixing = 0.5
kpcovr = KernelPCovR(
    mixing=mixing,
    regressor=KernelRidge(
        alpha=1e-8,
        kernel="rbf",
        gamma=0.1,
    ),
    kernel="rbf",
    gamma=0.1,
    n_components=2,
)
kpcovr.fit(X_scaled, y_scaled)
T = kpcovr.transform(X_scaled)
yp = y_scaler.inverse_transform(kpcovr.predict(X_scaled))

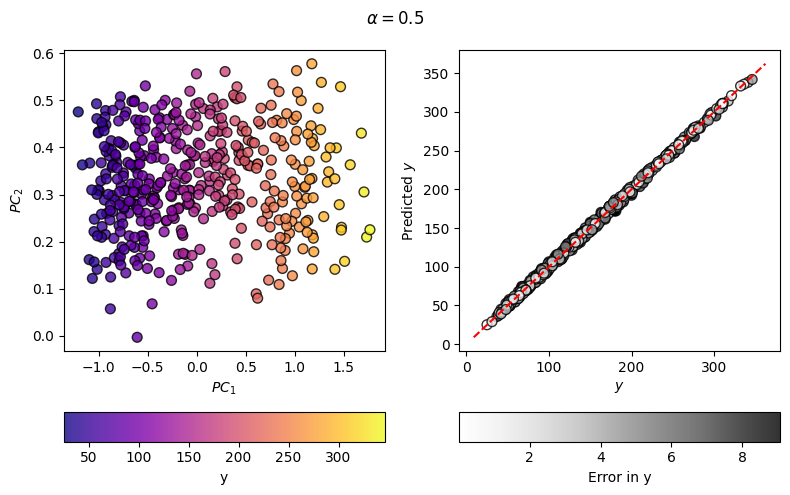

fig, ((axT, axy), (caxT, caxy)) = plt.subplots(
    2, 2, figsize=(8, 5), gridspec_kw=dict(height_ratios=(1, 0.1))
)

scatT = axT.scatter(T[:, 0], T[:, 1], s=50, alpha=0.8, c=y, cmap=cmapX, edgecolor="k")
axT.set_xlabel(r"$PC_1$")
axT.set_ylabel(r"$PC_2$")
fig.colorbar(scatT, cax=caxT, label="y", orientation="horizontal")

scaty = axy.scatter(y, yp, s=50, alpha=0.8, c=np.abs(y - yp), cmap=cmapy, edgecolor="k")
axy.plot(axy.get_xlim(), axy.get_xlim(), "r--")
fig.suptitle(r"$\alpha=$" + str(mixing))

axy.set_xlabel(r"$y$")
axy.set_ylabel(r"Predicted $y$")
fig.colorbar(scaty, cax=caxy, label="Error in y", orientation="horizontal")

fig.tight_layout()

As you can see, the regression error has decreased considerably from the linear case, meaning that the map on the left can, and will, better correlate with the target values.

Note on KernelPCovR for Atoms, Molecules, and Structures
